Specification: Size: 1/2 ” -2 ”.
Pressure Rating: Class 900-2500 LB.
Main Materials: A105(N), LF2, LF3, F11, F22, F91, F304(L), F316(L), F321, Alloy Steel, etc.
Suitable Temperature: -29 ℃-200℃ l Design and Manufacture: BS1873.
Face-to-Face: ASME B16.10 , BS1873, DIN3202.
Anfeng Industrial Zone, Oubei Town, Yongjia County, Zhejiang Province

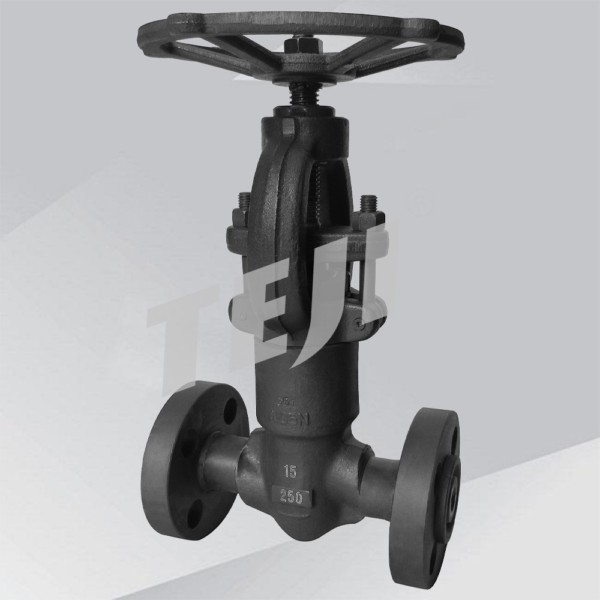

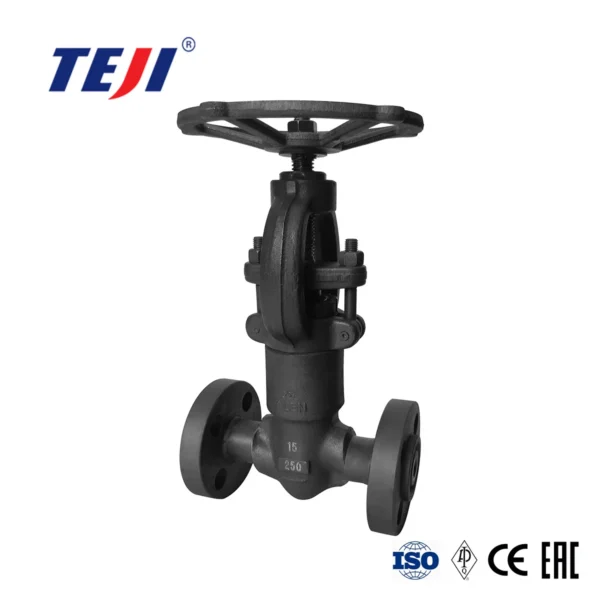

Pressure Seal Bonnet Forged Globe Valve-The structure of pressure seal bonnet forged globe valve is simple, so it is easy to be maintain. Opening and closing time is short because of small torque . Pressure seal bonnet forged globe valve has good seal performance,with waterproof, moistureproof function, and easy to install . It is exported all over the world, widely recognized by our customers.
This pressure seal bonnet forged globe valve features anti-cavitation effect, wear resistance, corrosion resistance, erosion resistance and long service life.
The sealing surface is cemented carbide, which is not easy to wear and scratch.
Small friction on sealing surface.
The valve bonnet is made by integral forging.
| No. | Name | Material | |||
| 1 | Body | A105N | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6a | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Seat | A105N | A182 F304 | A182 F304(L) | A182 F316(L) |
Size: 1/2”-2”
Pressure Rating: Class900-2500LB
Suitable Temperature: -29℃-200℃
Design and Manufacture: BS1873
Ends Connection: Integral/ Welded Flange, Butt Welding, Socket Welding, Thread etc.
Inspection & Testing: BS6755, EN12266
Temperature and Rating: ANSI B16.34
Operator: Bare shaft, Manual, Worm Gear, Electric.
As a professional manufacture,specializing in making assorted globe valves. We have a wide range of products for different purposes. But all of our products are of superior quality and eco-friendly. Since we have our own factory,we can offer you products in large quantities at wholesale prices. The MOQ is very low and our delivery time is short. In addition, we will give you our best after-sales service!
| NPS | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | |
| L(RTJ) | 900-1500LB | 216 | 229 | 254 | 279 | 305 | 368 |
| 2500LB | 264 | 273 | 308 | 349 | 384 | 451 | |
| H(open) | 900-1500LB | 318 | 318 | 318 | 398 | 408 | 524 |
| 2500LB | 333 | 333 | 333 | 410 | 420 | 524 | |
| W | 160 | 160 | 180 | 200 | 250 | 280 | |
| Weight,kg | 900-1500LB | 15.5 | 16.9 | 18.9 | 28.9 | 32.3 | 52.8 |
| 2500LB | 18 | 20.5 | 23 | 36.1 | 45 | 81.5 | |
IMPROVEMENTS:
