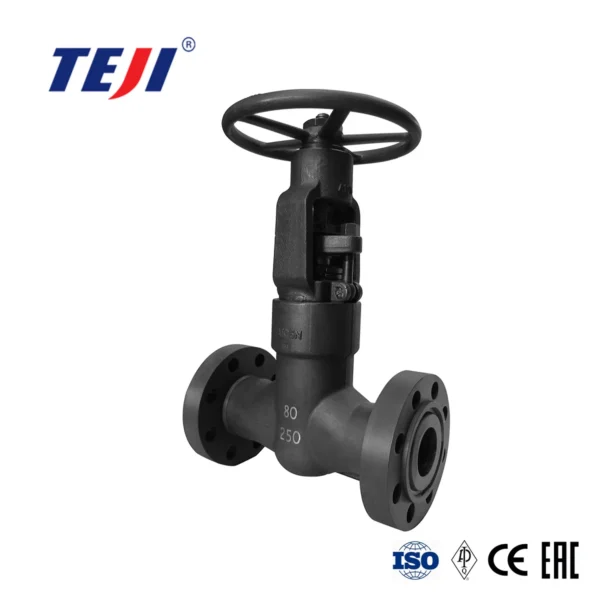

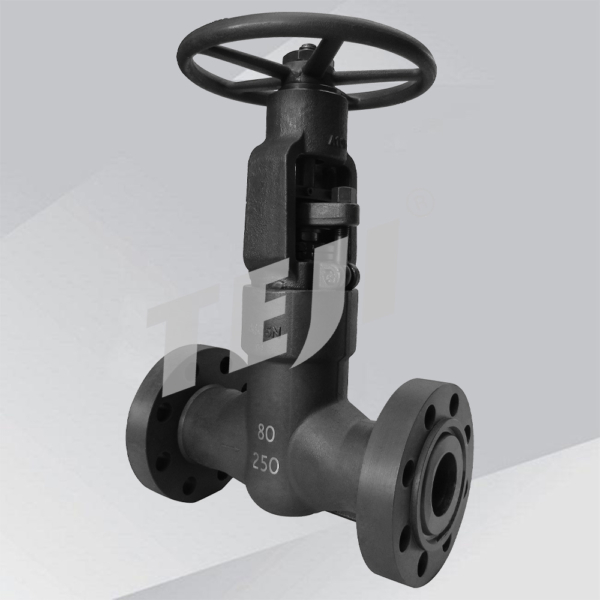

Pressure Seal Bonnet Forged Gate Valve

You Are Here:

Pressure Seal Bonnet Forged Gate Valve

Product Parameter Information

Size: 1/2″~4″
Pressure Rating: Class 1500~2500
BB,WB,PSB
OS&Y

Office

Anfeng Industrial Zone, Oubei Town, Yongjia County, Zhejiang Province

Share:

Product Description

PRODUCT INTRODUCTION
There are three type bonnet designs of forged steel flange valves. One is bolted bonnet, the body and bonnet are connected by bolts and nuts and spiral wound gasket. The second one is welded bonnet design, the valve is fully welded and sealed. The third one is pressure seal bonnet, it is pressure seal bonnet construction, and the internal pressure is self-compacting, it normally for high pressure. The seal surface of the pressure seal bonnet forged gate valve is flat or pyramidal and the disc moves in a straight line along the center line of the seat. The stem movement form also has the lifting and rotating stem type for controlling the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.Therefore, this  pressure seal bonnet forged gate valve is ideal for cutting or regulating and throttling.

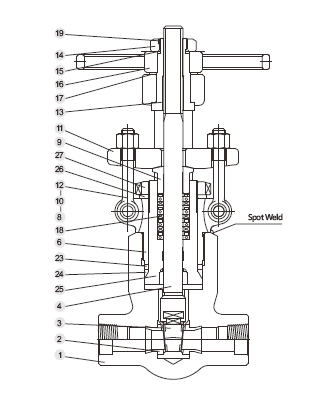

STRUCTURE OF 2500LB PSB GATE  VALVE
Pressure Seal Bonnet Forged Gate Valve desc
FEATURES
  1. The self-sealing structure can make the valve body of the high-pressure valve and the bonnet connection have a compact structure, saving labor and materials, safe and reliable
  2. When the valve is at 2500LB and above, the stainless steel lining is welded on the contact between the inner cavity of the valve body and the sealing ring, which avoids the erosion of the sealing area of the valve body under the high pressure and the occurrence of pitting leakage, thereby ensuring the valve’s Safe long-term operation
DATA TABLE OF 2500LB PSB GATE VALVE
NQ Part Name A105/F6a A105/F6aHFS LF2/304 F11/F6aHF F304(L)/304(L) F316(L)/316(L) F91/F91
1 Body A105 A105 LF2 F11 F304(L) F316(L) F91
2 Seat 410 410HF 304 410HF 304(L) 316(L) 410HF
3 Wedge F6a F6a F304 F6aHF F304(L)HF F316(L)HF F6aHF
4 Stem 410 410 304 410 304(L) 316(L) 410
6 Bonnet A105 A105 LF2 F11 F304(L) F316(L) F91
8 Pin 410 410 410 410 304 304 410
9 Gland 410 410 304 410 304 316 410
10 Gland eyebolt B7 B7 L7 B16 B8(M) B8(M) B8
11 Gland flange A105 A105 A105 A105 F304 F304 A105
12 Hex nut 2H 2H 2H 2H 8(M) 8(M) 8
13 Stem nut 410 410 410 410 410 410 410
14 Locking nut 35 35 35 35 35 35 35
15 Name plate AL AL AL AL AL AL AL
16 Hand wheel A197 A197 A197 A197 A197 A197 A197
17 Lubrication gasket 410 410 410 410 410 410 410
18 Packing Grapite Grapite Grapite Graphite Graphite Graphite Graphite
19 Stop nut 35 35 35 35 35 35 35
23 Seal gasket 420 420 304 304 304(L) 316(L) 420
24 RS.ring 304 304 304 304 304 316 316
25 RS seal 420 420 304 304 304(L) 316(L) F91
26 Nut pad 410 410 410 410 410 410 410
27 Packing nut Cast steel Cast steel Cast steel Cast steel Stainless steel Stainless steel Cast steel
SPECIFICATIONS

Size: 1/2″~4″

Pressure Rating: Class 1500~2500

BB,WB,PSB

OS&Y

Solid Wedge

Renewable Seat Rings

Thread /SW / BW/Flange

STANDARD

Design: API602/ASME B16.34/BS5352

Face to Face: ASME B 16.10/BS EN558

End Flange: ASMEB 16.5

End BW: ASMEB16.25

Pressure Temp. ASME 16.34

Test: API598

Special: NACE MR-01-75
