Lug Type Dual Plate Valve

You Are Here:

Lug Type Dual Plate Valve

Product Parameter Information

Category Check Valves

Size: 2”~24” (DN50~DN600)

Pressure Rating: 150LB~2500LB (PN1.6MPa~PN42.0MPa)

Main Material: WCB (A105), LCB (LF2), CF8 (F304), CF8M (F316), CF3 (F304L), CF3M (F316L), 4A (F51), Alloy Steel, Monel, Bronze etc.

Connection End: Wafer, Lug

Design Standard: API 594/ API6D

Face to Face: ASME B16.10/ API 594/ EN558

Test and Inspection: API 598/ EN12266

Office

Anfeng Industrial Zone, Oubei Town, Yongjia County, Zhejiang Province

Product Description

DESCRIPTION:

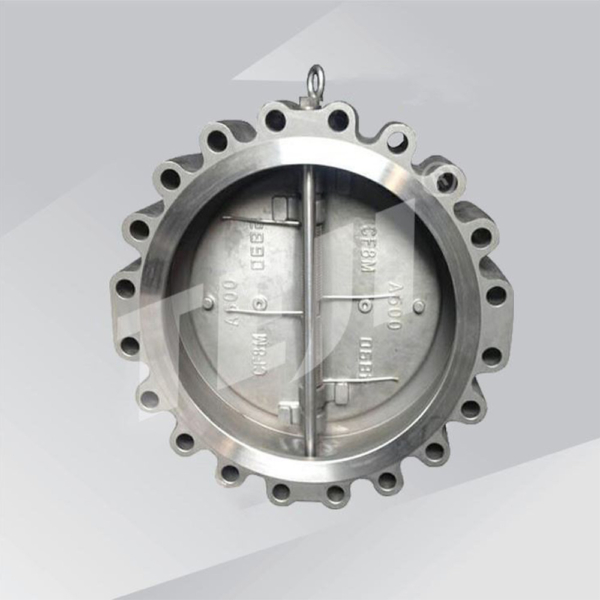

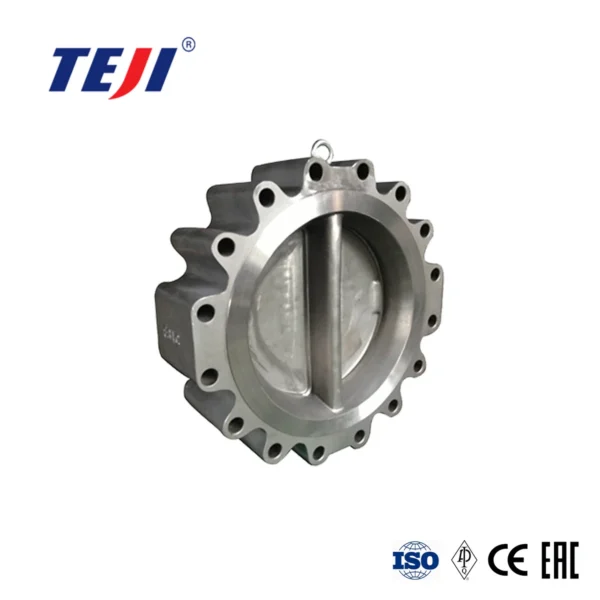

Lug type dual plate check valves are mainly composed of body, disc, stem and spring. Due to its short structure, light weight, short disc closing stroke and fast closing, it can reduce water hammer. The disc is a semi-circular dual plate structure, which can rotate around the rotating shaft in the valve body. The stress of the rotating shaft must be on the same plane with the sealing surface of the valve body, so as to ensure the sealing when the valve is closed. Connection type: it adopts dual plate lug type is, which can make the valve body more beautiful in appearance, small volume and light in weight.

SPECIFICATION:

Size: 2”~24” (DN50~DN600)

Pressure Rating: 150LB~2500LB (PN1.6MPa~PN42.0MPa)

Main Material: WCB (A105), LCB (LF2), CF8 (F304), CF8M (F316), CF3 (F304L), CF3M (F316L), 4A (F51), Alloy Steel, Monel, Bronze etc.

Connection End: Wafer, Lug

Design Standard: API 594/ API6D

Face to Face: ASME B16.10/ API 594/ EN558

Test and Inspection: API 598/ EN12266

FEATURES:

1. Short and compact in structure, light in weight, easy in maintenance.

2. The quick-close action prevents the medium from flowing back and eliminates water-hammer effect.

3. It is easy to install on pipeline which is laid horizontally or vertically.

4. Safe and reliable in operation, high interference resistance.

Get A Quote Now

Quality Assurance

IMPROVEMENTS:

Set up a trained and standardized Quality Control technician Team.
With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
