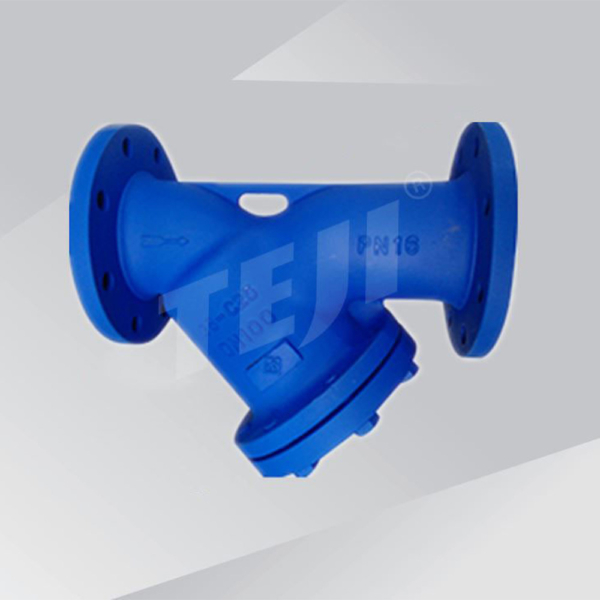

DIN Cast Y-Strainer

You Are Here:

DIN Cast Y-Strainer

Product Parameter Information

Category Y-Strainer

DIN Cast Y-Strainer Technical Requirements
1.Design Standard: DIN EN13709-2003
2.Face to Face Dimension DIN EN588-1:1995.
3.End Flange Dimension DIN EN1092-1:2002.
4.Test Standard DIN EN12266:2003.

Office

Anfeng Industrial Zone, Oubei Town, Yongjia County, Zhejiang Province

Product Description

TECHNICAL REQUIREMENTS

1.Design Standard: DIN EN13709-2003 2.Face to Face Dimension DIN EN588-1:1995 3.End Flange Dimension DIN EN1092-1:2002. 4.Test Standard DIN EN12266:2003. Y-Type Strainer is a device of medium transfer which are usually installed at the access side of reducing valve, relief valve, level control valve, so as to clear the impurities of the medium and protest valves & devices. Y-Strainer apply to the medium of water, oil and gas.

Performance Specifications

Nominal Pressure		1.6MPa	2.5MPa	4.0MPa
Pressure Test	Intensity Test	2.4MPa	3.75MPa	6.0MPa
	Back Seat Test	1.76MPa	2.75MPa	4.4MPa
	Seal Test	1.76MPa	2.75MPa	4.4MPa
	Gas Test	0.6MPa	0.6MPa	0.6MPa
Suitable Temp.			-29~425℃
Suitable Medium			W.O.G

Main Parts & Materials

Body	GG GS-C25, CF8, CF8M
Bolt	A193 Gr. B7, A193 B8
Nut	A194 Gr. 2H, A194 8
Bonnet	GG GS-C25, CF8, CF8M
Plug Screw	SS304
Screen	SS304
Gasket	Flex.Graphite+SS304

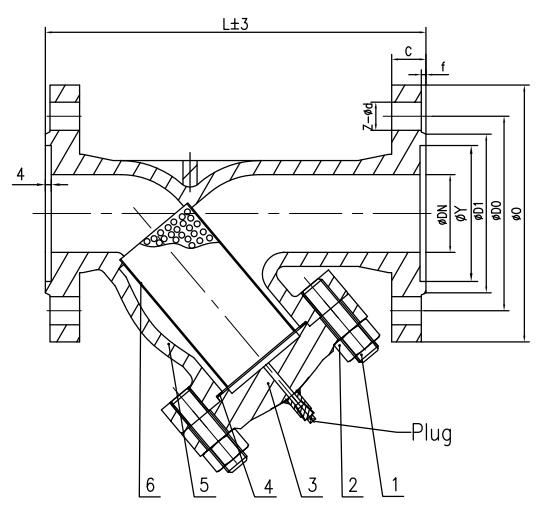

SIZE DN	65	80	100	125	150	200	250	300	350	400
L	PN16	290	310	350	400	480	600	730	850	900	1100
PN25	290	310	350	400	480	600	730	850	900	1100
PN40	290	310	350	400	480	600	730	850	900	1100
D	PN16	185	200	220	250	285	340	405	460	520	580
PN25	185	200	235	270	300	360	425	485	555	620
PN40	185	200	235	270	300	375	450	515	580	660
D0	PN16	145	160	180	210	240	295	365	410	470	525
PN25	145	160	190	220	250	310	370	430	490	550
PN40	145	160	190	220	250	220	385	450	510	585
D1	PN16	122	138	158	188	212	268	320	378	428	490
PN25	122	138	162	188	218	278	335	395	450	505
PN40	122	138	162	188	218	285	345	410	465	535
c	PN16	18	20	20	22	22	24	26	28	30	32
PN25	22	24	24	26	28	30	32	34	38	40
PN40	22	24	24	28	28	34	38	42	46	50
f	PN16	3	3	3	3	3	3	3	4	4	4
PN25	3	3	3	3	3	3	3	4	4	4
PN40	3	3	3	3	3	3	3	4	4	4
z-∅d	PN16	8×18	8×18	8×18	8×18	8×22	12×22	12×26	12×26	16×26	16×30
PN25	8×18	8×18	8×22	8×22	8×26	12×26	16×30	16×30	16×33	16×36
PN40	8×18	8×18	8×18	8×18	8×26	12×30	16×33	16×33	16×36	16×39
Weight	PN16	22.0	32.0	48.0	68.0	189.0	300.0	/	/	/	/
PN25	22.0	32.0	48.0	68.0	189.0	300.0	/	/	/	/
