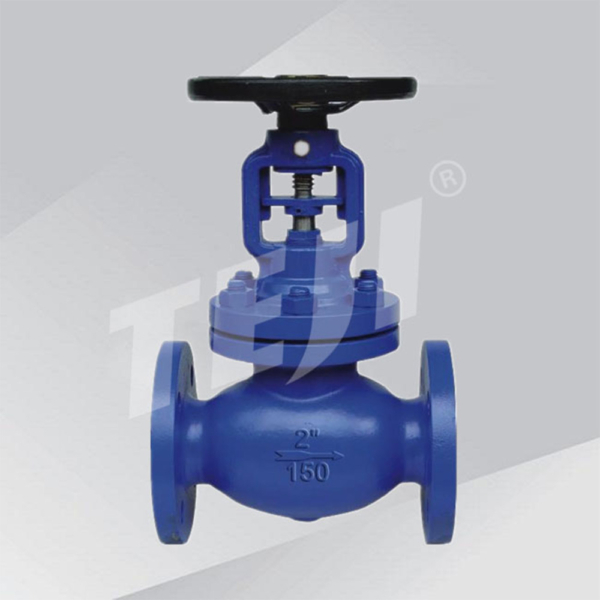

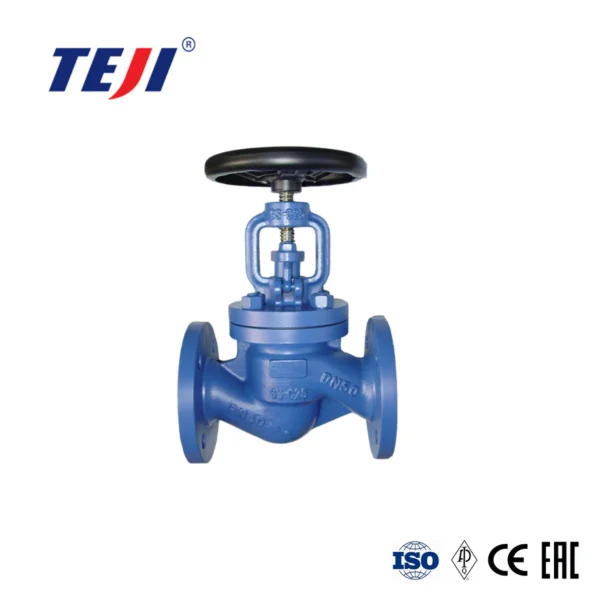

Bellow Seal Globe Valve

You Are Here:

Bellow Seal Globe Valve

Product Parameter Information

Category Globe Valves

The inner of the bellows seal globe valve adopts a bellows structure, and the bottom end of the stainless steel bellows is welded on the stem, to prevent the fluid from eroding the valve stem.

Office

Anfeng Industrial Zone, Oubei Town, Yongjia County, Zhejiang Province

The inner of the bellows seal globe valve adopts a bellows structure, and the bottom end of the stainless steel bellows is welded on the stem, to prevent the fluid from eroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. Adopting double seal structure, if the bellows fails, the stem packing can be avoided leakage. This kind of globe valve is suitable for pipelines of steam, flammable, explosive, heat transfer oil, high purity, toxic and other medium.

SPECIFICATION:

● Size: 2”~24”

● Pressure Rating: Class150~2500LB

● Main Materials: WCB, WC6, WCC, LCB, CF8, CF8M, CF3, CF3M, 4A, LF2, F304, F316 etc.

● Bellows Material: SS304, SS316, SS321, Inconel etc.

● Design and Manufacture: BS1873, API600, DIN3356

● Face-to-Face: ASME B16.10, DIN3202, EN558

● Pressure-temperature Ratings: ASME B16.34

● Ends Connection: Flange, Butt Welding

● Inspection & Testing: API 598, EN12266

● Operator: Handwheel, Bevel Gear, Electric, Pneumatic.

FEATURE:

● BB-BG-OS&Y

● Double Bellows

● Double Sealing

● Non-rising Stem

● Position Indicator

● Straight Type or Angle Type Body

Get A Quote Now

Quality Assurance

IMPROVEMENTS:

Set up a trained and standardized Quality Control technician Team.
With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
